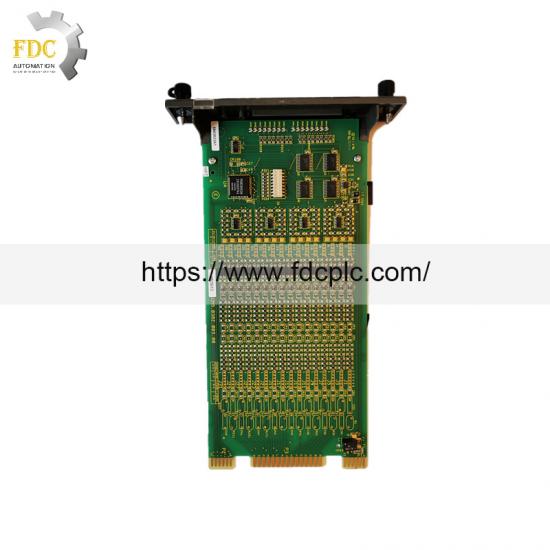

ABB IMDSI22 16 CH Digital Input Module

ABB IMDSI22 16 CH Digital Input Module

Contact：cassiebirthdayparty@gmail.com

Cables.

The FEC module is an intelligent module, with on-board microprocessor, memory, analog-to-digital converter and communication circuitry. The module is a single printed circuit board that occupies one slot in a module mounting unit (MMU). Two captive latches on the module faceplate secure it to the module mounting unit. The module has three card edge connectors for external signals (transmitter inputs and communication), system communication (I/O expander bus) and power.

The module receives input through a cable connection to a termination unit (TU) or termination module (TM). Wiring from the field devices connect to terminal blocks on the termination unit or termination module. The IMFEC11 circuit board has 18 jumpers; three jumpers that allow selecting the mode of operation and communication (J2, J3 and J4) and 15 jumpers that select voltage/current input (J6 through J20). A dipswitch setting (S1) holds the I/O expander bus address of the module.

ABB IMDSI22 Technical drawing:
